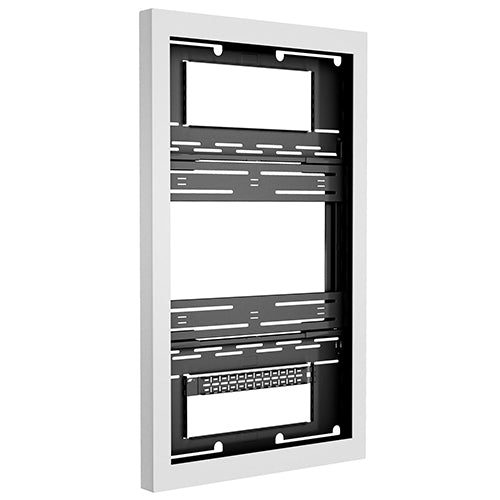

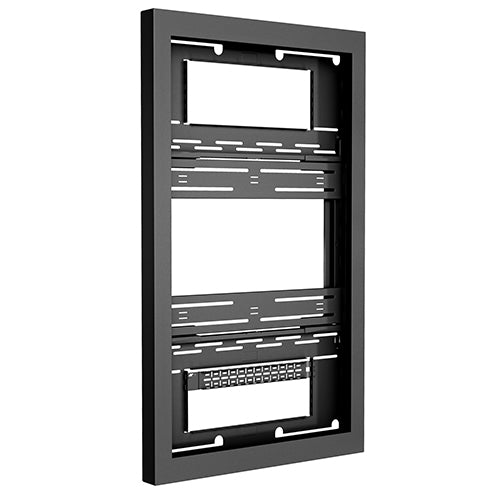

Chief Impact On-Wall Kiosk - Portrait 48" LW Series

The Impact™ On-Wall Kiosk brings new flexibility to the digital signage enclosure market while maintaining a sleek aesthetic to complement a variety of environments. A depth-adjustable exterior frame allows for a variety of displays to be used. Reversible hinges help to avoid installation and service obstructions, and the exclusive design keeps the display mounted to the frame when opened, providing unparalleled service and maintenance access.

Key Features

• Depth-adjustable exterior frame supports a wide range of displays
• A wall protrusion of 4" (101mm) or less can be obtained by using flat panels less than 2.75" (70mm) in depth

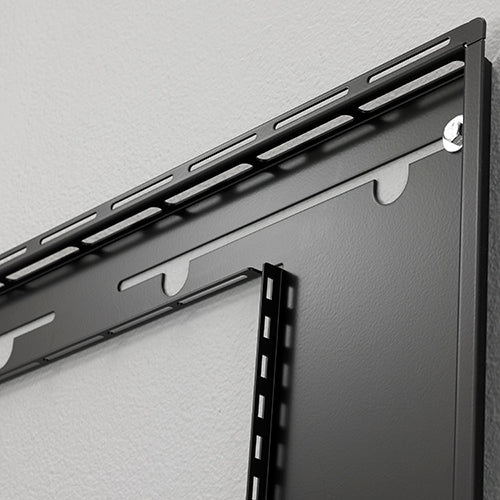

• Integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling

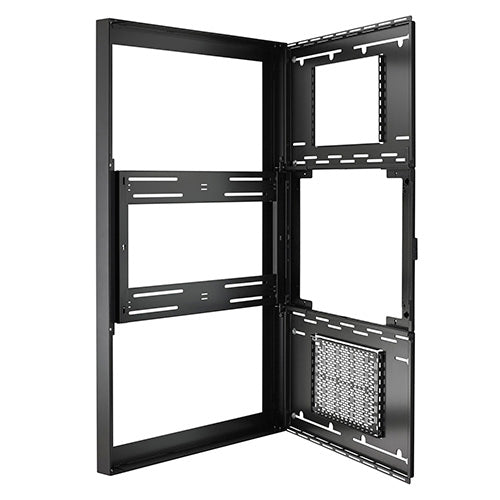

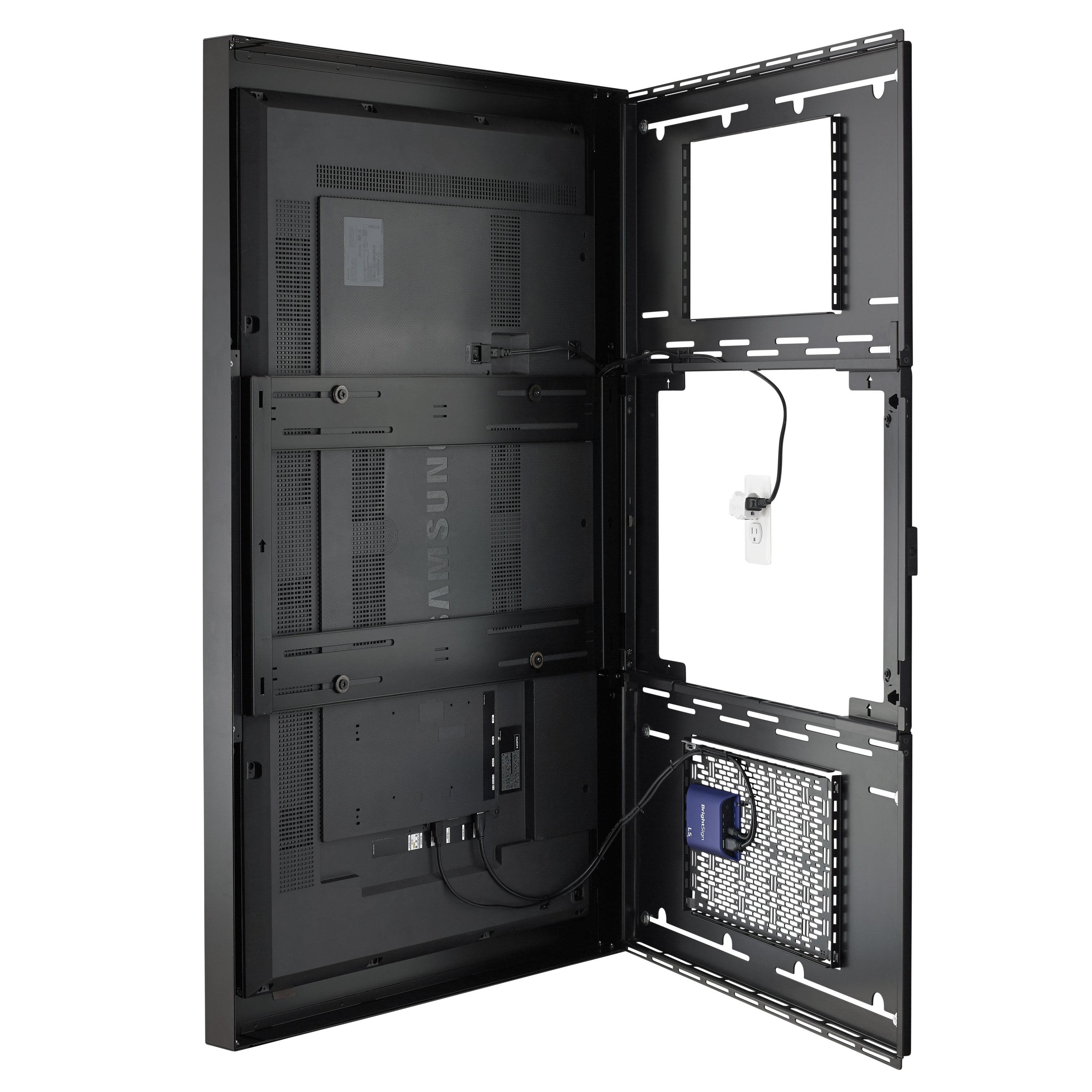

• Exclusive design keeps the display mounted to the frame when opened for unparalleled service and maintenance access
• Reversible hinges to avoid obstructions for installation and service

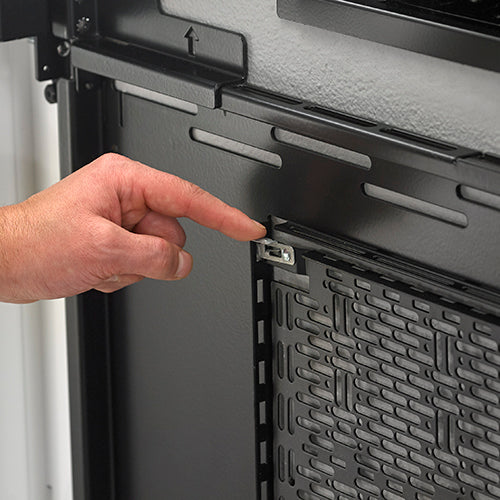

• Engagement latch can be secured with tamperproof hardware
• Multiple storage options available
• Middle Atlantic’s Lever Lock^TM technology is integrated to avoid cutting into walls
• Another Lever Lock can be added
• Large empty center backing enables use with in-wall boxes
• Compatible with PAC525 and PAC526 series in-wall boxes, including power options

Specifications:

Certifications
TÜV Certified, UL Listed

Color
Black, White

Maximum Screen Thickness
3.75" (96 mm)

Mounting Pattern Compatibility (Universal Versions)
300 x 300 mm, 400 x 400 mm

Typical Screen Sizes
48"

Weight Capacity
Mount: 100 lbs (45.36 kg); Panel 5 lbs (2.27 kg)

Orientation
Portrait

Depth range
3-5" (76 - 127 mm)
