ESI Solution 7

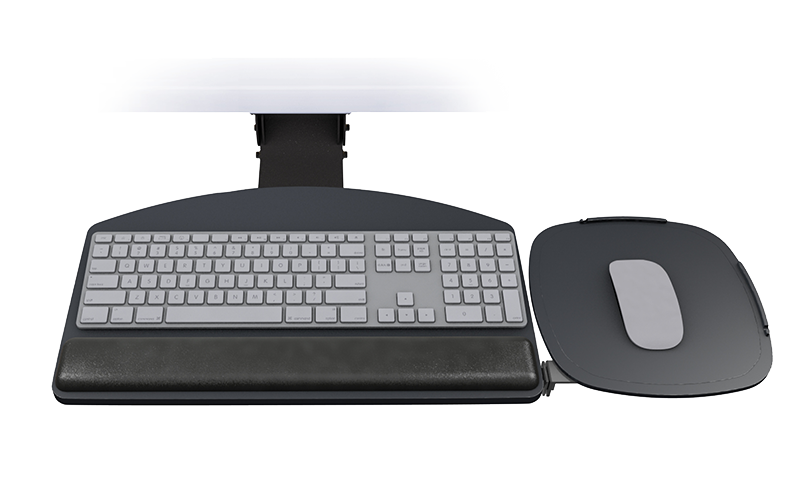

PL217 Switch-n-Click Platform and AA750DAT Articulating Arm

Designed to complement radius corner work surfaces and position the keyboard closer to the work area.

Tech Specs:

• Recommended for radius corner worksurfaces
• PL217 keyboard platform
  • Includes: gel palm rests, mouse pad, mouse guards, cord management clips
  • Made from black 0.3” thin phenolic
• 18.8" keyboard platform with 9.3" switch‑and‑click mousing platform
• Reversible design; mouse platform mounts on left or right side - no tools required
• AA750DAT articulating arm
• Lift‑and‑lock height adjustment
• Dial-a-tilt adjustment
• 21.8" glide track
• 22.0" clearance required for full retraction
• +10º/-15º tilt adjustment
• 7.2" height adjustment range
  • 2.3" above track | 4.9" below track
• 360º glide track rotation
• Positions flush with worksurface
• Warranty:
  • 15 yr. articulating arm/platform
  • 2 yr. palm rest/mouse pad
• Available on GSA contract
