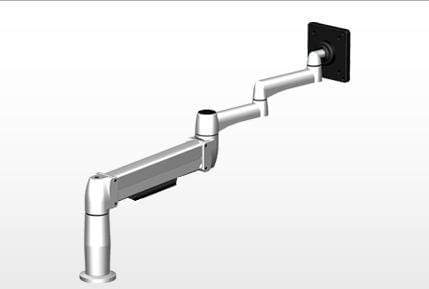

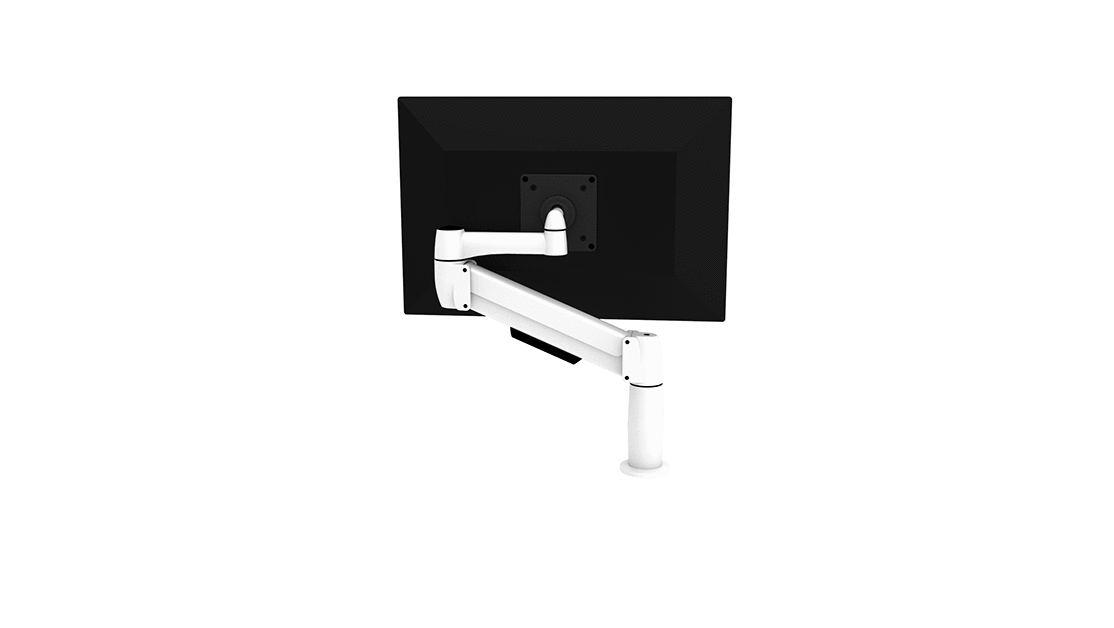

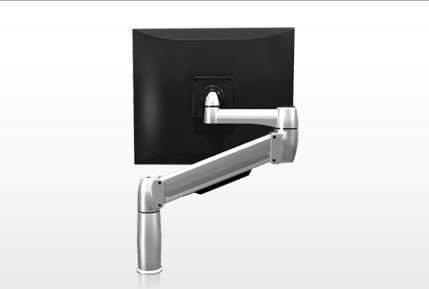

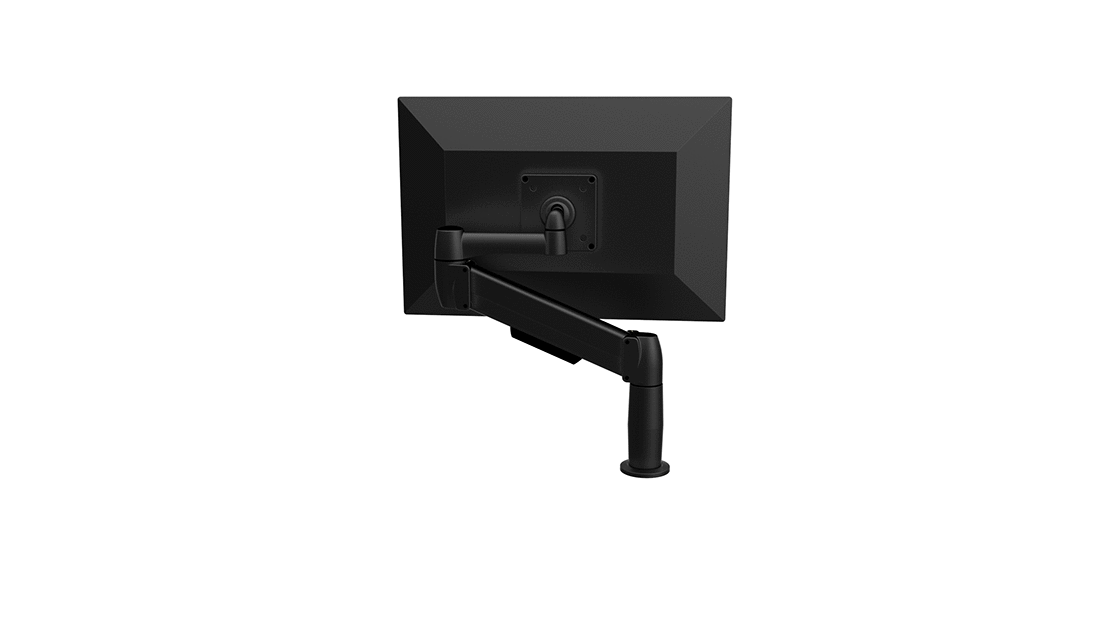

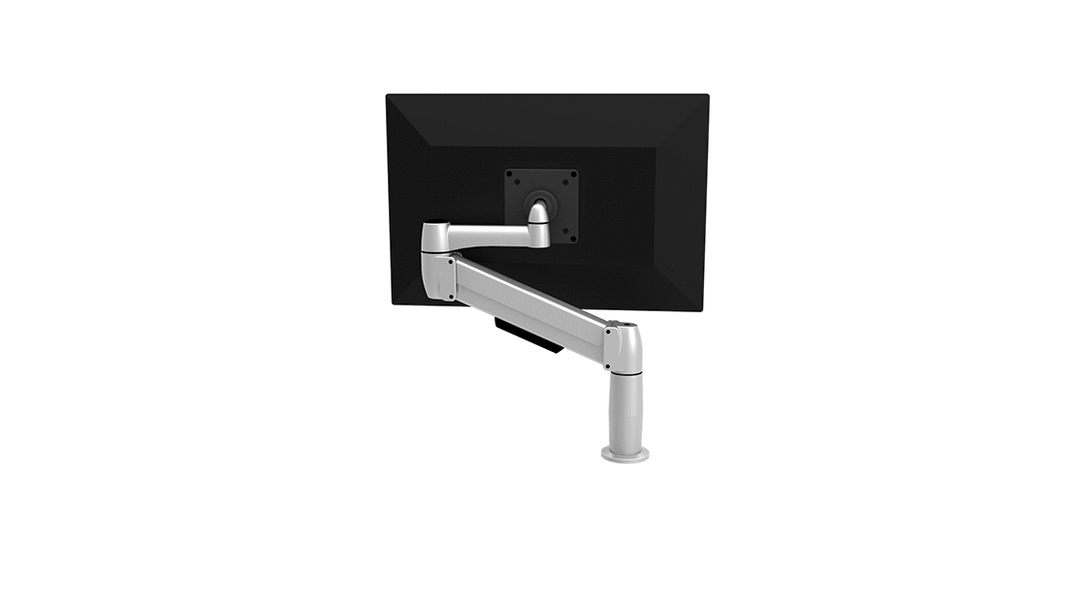

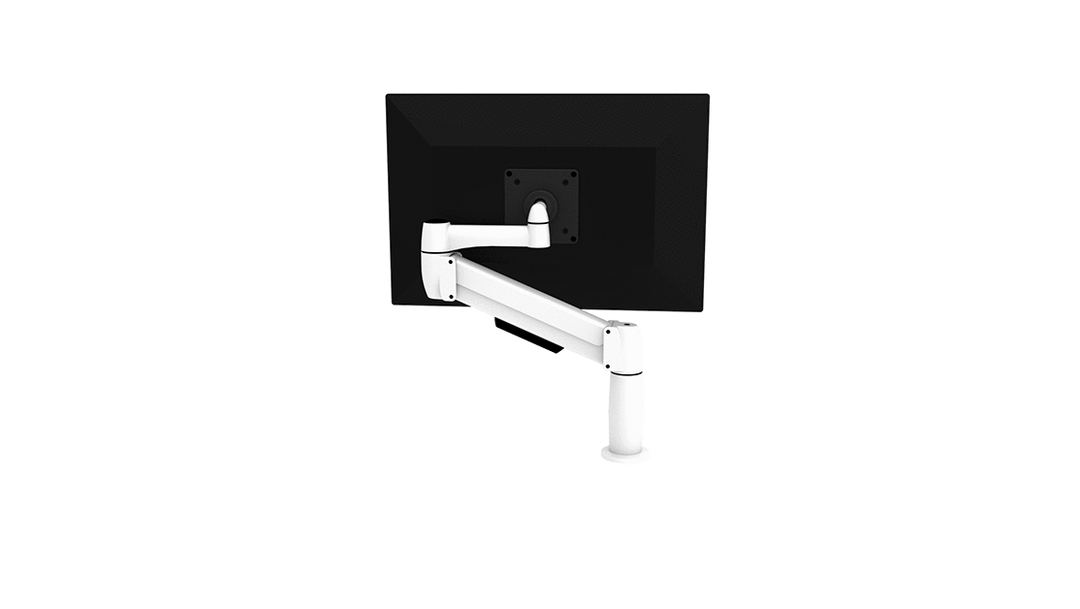

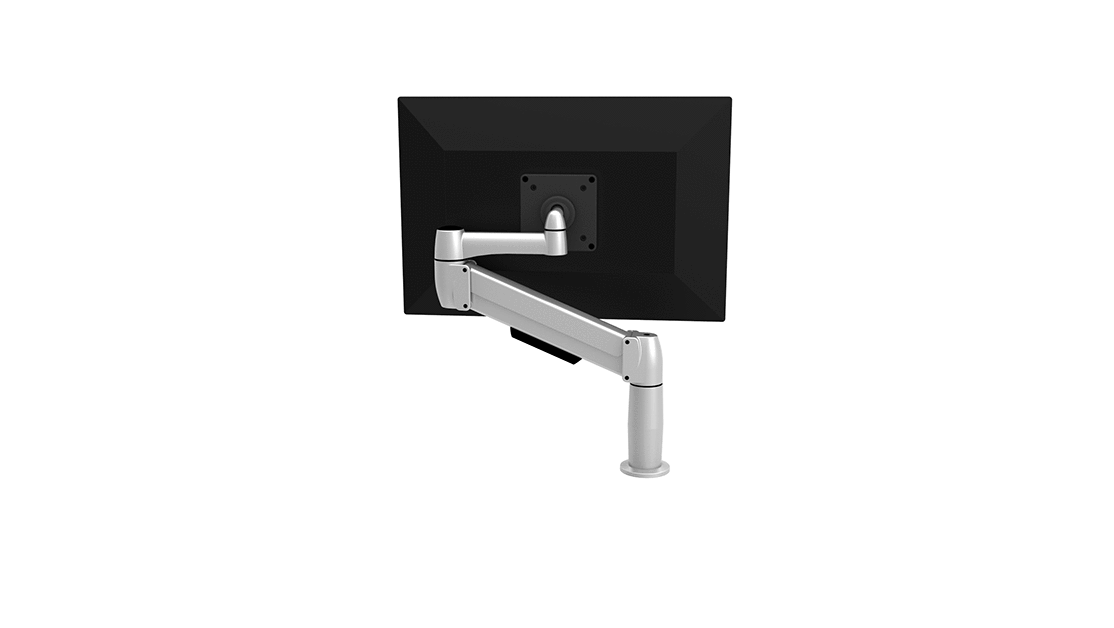

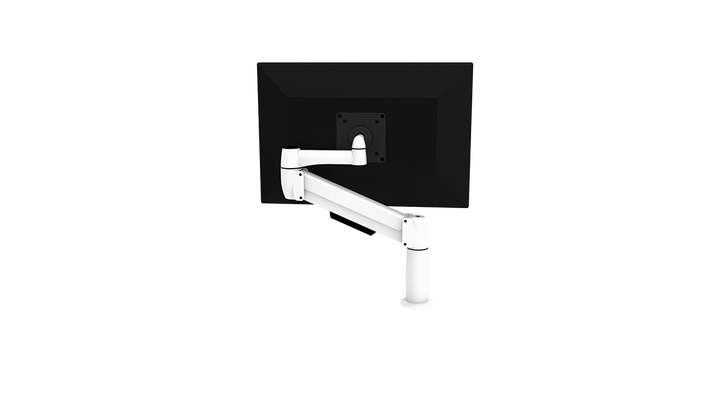

The SA01XP builds on the strengths of the basic SA01 arm. With the SpaceArm Extended Single Arm, there’s more horizontal reach plus an extra joint of articulation. This gives you more flexibility in how to position a single monitor ergonomically, so you don’t compromise your posture while working. The wide range of customization options ensures there is at least one SA01XP setup fit for your office needs.
Specifications:
Vertical range: (Standard) Up to 20” (50.8 cm)
Horizontal range: Up to 27” (68.6 cm); folds to 2.5” (6.4 cm) when not in use
Weight capacity:
- With light gas strut: up to 10 lbs (0.9 kg – 4.5 kg)
- With standard gas strut: 5 – 16 lbs (2.2 kg – 7.2kg)
- With heavy gas strut: 15 – 30 lbs (6.8 kg – 13.6kg)
Monitor tilt: 40 degrees (20 degrees up, 20 degrees down)
Monitor view: 360 degrees; portrait and landscape rotation
Rotation: 230º-230º- 360º-360º at 4 different joints
Mount-to- monitor option: Direct VESA, Quick Change
Mount-to- surface option:
- Bolt-through
- C-clamp
- Large C-clamp,
- Grommet
- Panel Mount

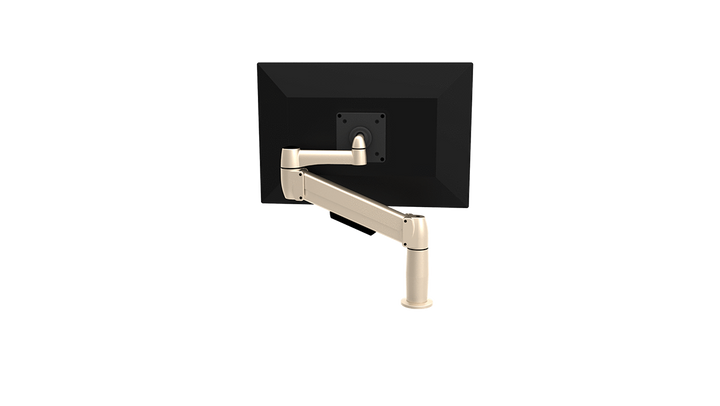

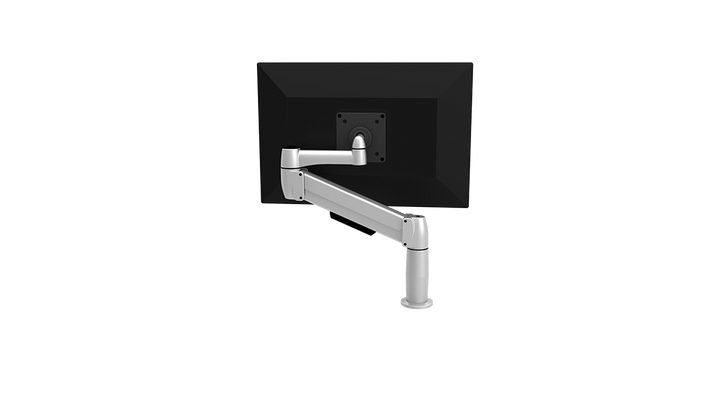

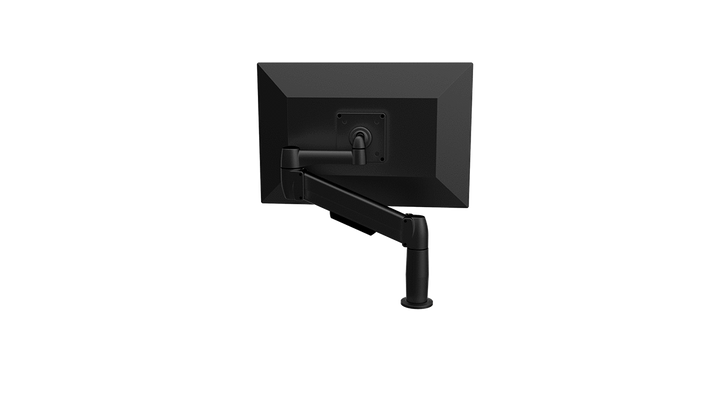

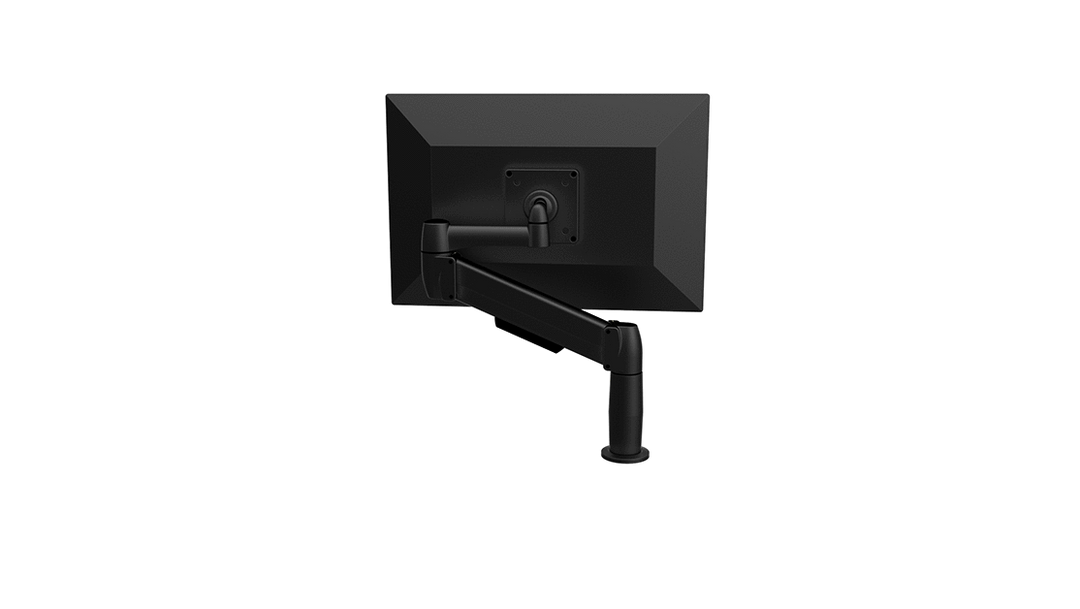

Color: Platinum, White, Black, Champagne
Features:
- Adjust height +/- 7” from the center, up to 20”. Height can be added with optional 4”, 6”, 8” extender tubes.
- Default mount-to- monitor mount is the Direct VESA mount plate. Optional Quick Change universal mount for quick switching of monitors.
- Optional mount-to- monitor accessories include: security screw (locks monitor to arm); security set screw (locks SpaceArm to hub); adjustable, rotational knobs at each joint; 180-degree rotational stop to prevent monitor collisions.
- High-pressure die-cast aluminum construction and thermo-fused polyester finish.
