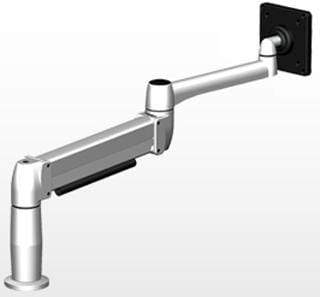

SpaceCo SpaceArm Long Arm

The SpaceArm Long Arm will mount your flat monitor to a comfortable angle, at an extra-long distance. SX01 has many customization options, and one that will surely impress is its range of surface mounting choices. Whatever your office needs, certainly there’s one available manner for you to use the SX01 arm. Also, if you opt for the heavy gas strut, lifting a single monitor as heavy as 30 pounds is not a problem. All these features combine to make SX01 an excellent choice for a clutter-free desk.

Specifications:

Vertical range: (Standard) Up to 17.5” (44.5 cm)

Horizontal range: Up to 24.5” (62.2 cm); folds to 2.5” (6.4 cm)
when not in use

Weight capacity:

• With light gas strut: up to 10 lbs (0.9 kg – 4.5 kg)
• With standard gas strut: 5 – 16 lbs (2.2 kg – 7.2kg)
• With heavy gas strut: 15 – 30 lbs (6.8 kg – 13.6kg)

Monitor tilt: 40 degrees (20 degrees up, 20 degrees down)

Monitor view 360 degrees; portrait and landscape rotation

Rotation 230º360º-360º at 3 different joints

Mount-to-monitor option: Direct VESA, Quick Change

Mount-to-surface option:

Bolt-through, C-clamp, Large C-clamp,
Grommet, Panel Mount

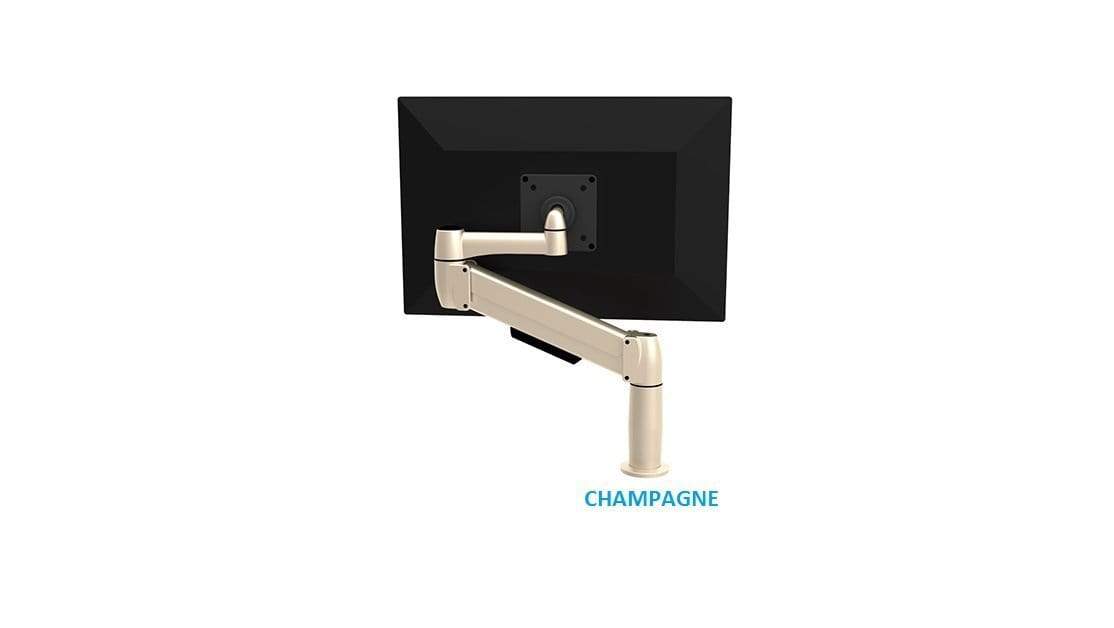

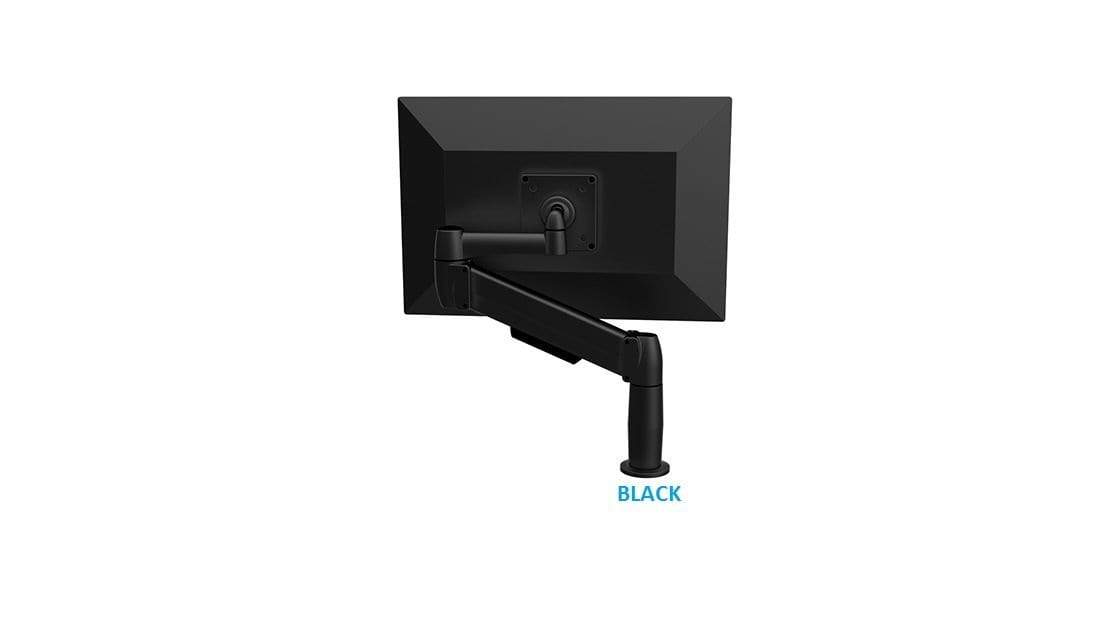

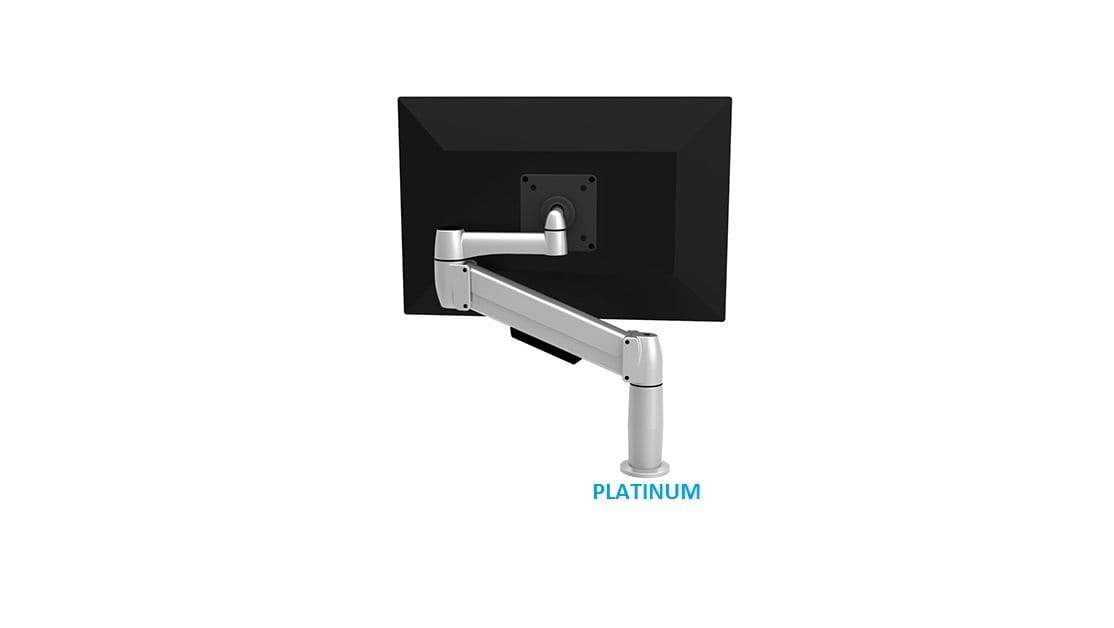

Color: Platinum, White, Black, Champagne

Features:

• Adjust height +/- 7” from the center, up to 17.5”. Height can be added with optional 4”, 6”, 8” extender tubes.
• Extra-long reach, up to 24.5” extension from the center of the mount. When not in use, SX01 saves space by folding to just 2.5”.
• Default mount-to-monitor mount is the Direct VESA mount plate. Optional Quick
• Change universal mount for quick switching of monitors.
• Optional mount-to-monitor accessories include: security screw (locks monitor to arm); security set screw (locks SpaceArm to hub); adjustable, rotational knobs at each joint; 180-degree rotational stop (limiter to the SpaceArm hub, prevents monitor collisions).
• High-pressure die-cast aluminum construction and thermo-fused polyester finish.
