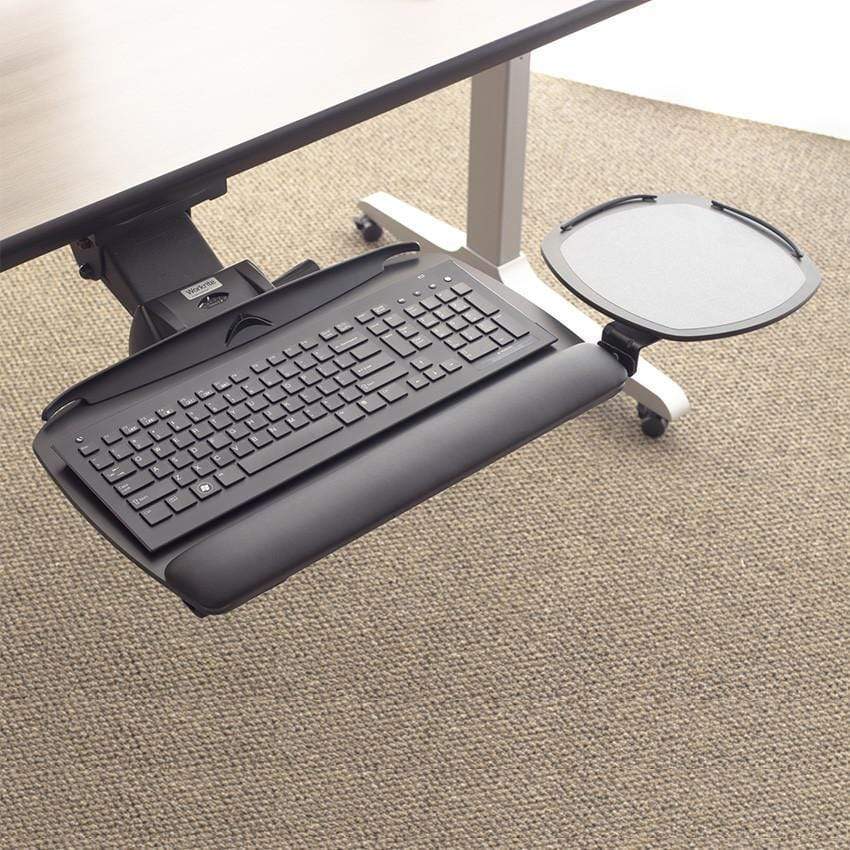

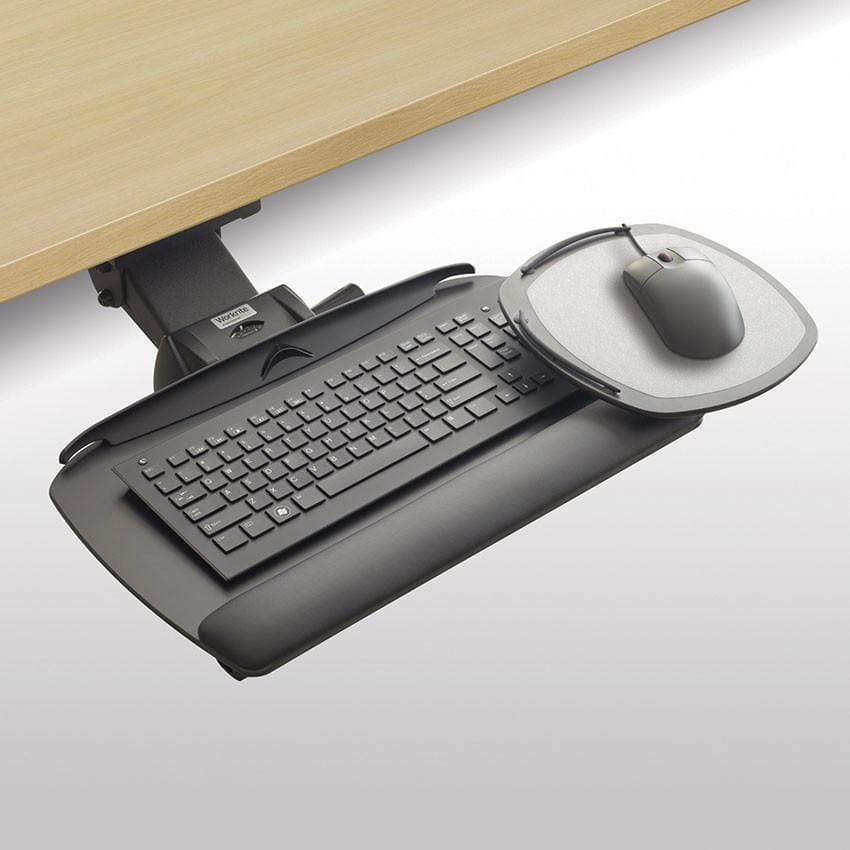

The Revo Platform is ideal in tight works spaces. It’s adaptable mouse-over platform design conserves space and is perfect for corner applications. It’s removable palm support is super comfortable and easy to clean.The platform also includes a built-in document holder and cable management system. The Revo platform is available as a solo platform or with a keyboard arm.
Technical Drawing
Features:

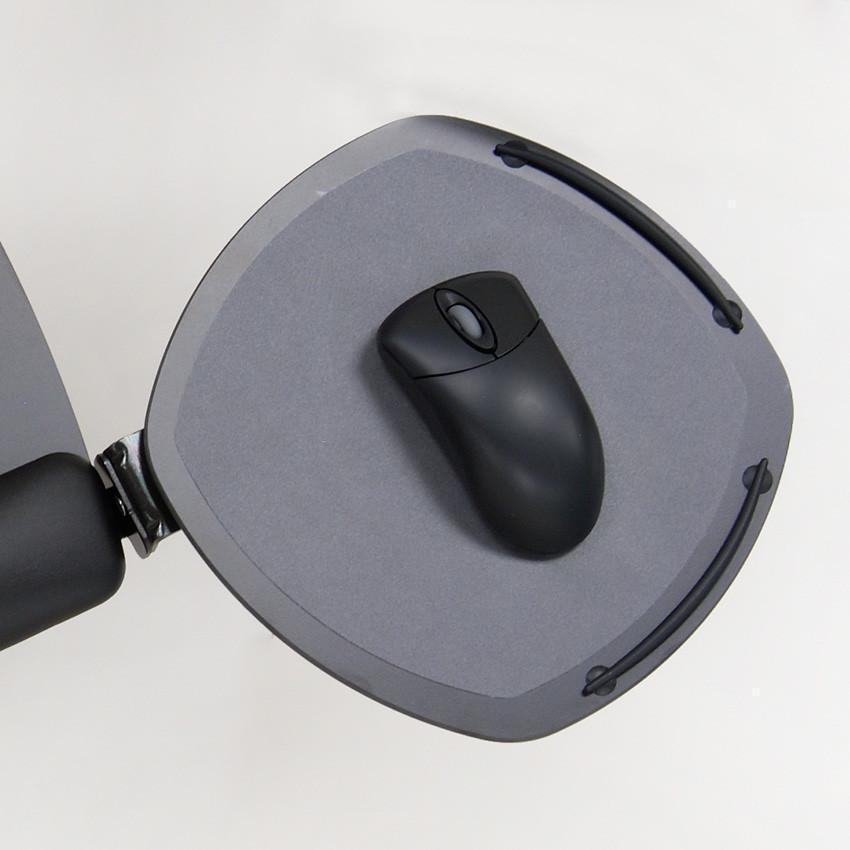

- Swivel mouse tray.
- Cable management kit.
- Built in document holder.
- Removable palm support.

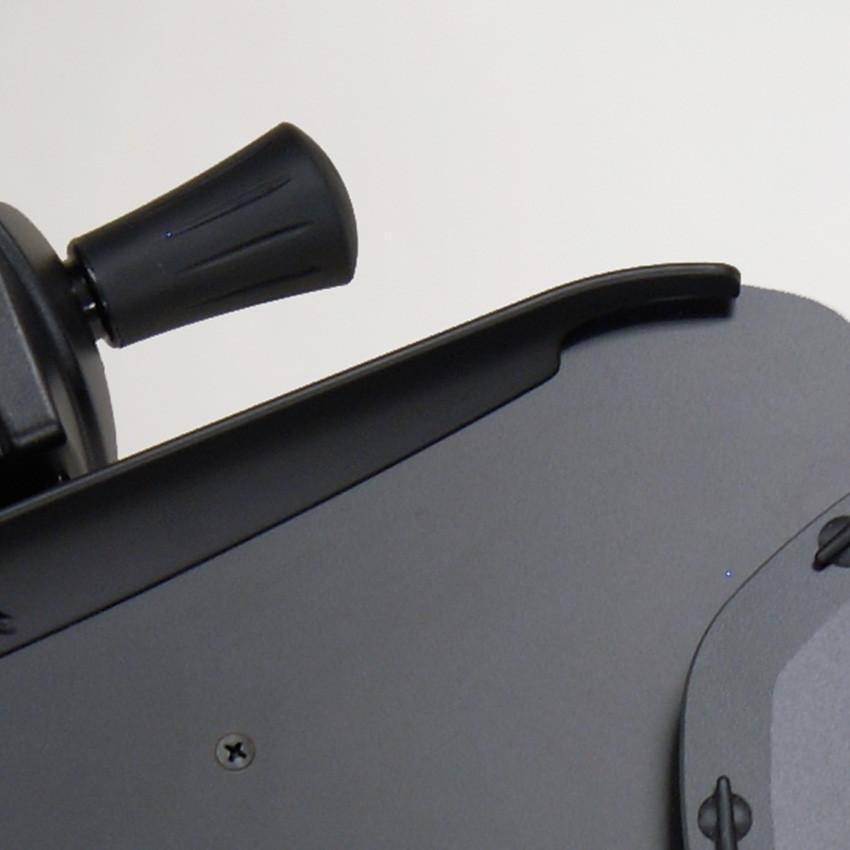

- Auto lock mechanism that allows you to easily adjust tray position (Keyboard Tray System).
Specifications:
Platform Material |
UltraThin™ .25″ solid phenolic construction |
System Inclusion (Optional) |
3170 Pinnacle 2 keyboard arm |

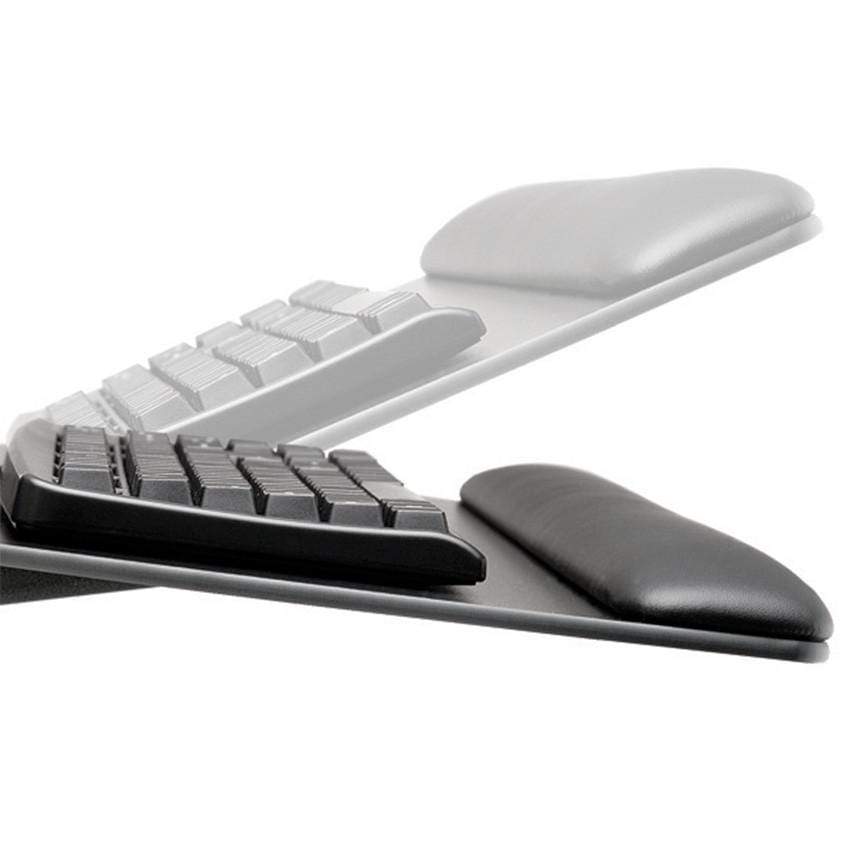

Platform Tilt |
25° tilt range: -15° +10° |
Vertical Adjustment |
Adjusts from flush to 6″ below work surface |
Track Length |
17” (2227-17); 21”(2227-22) |
Platform Storage |
17” track - exceeds 3” front of track; 22” track- full storage |
