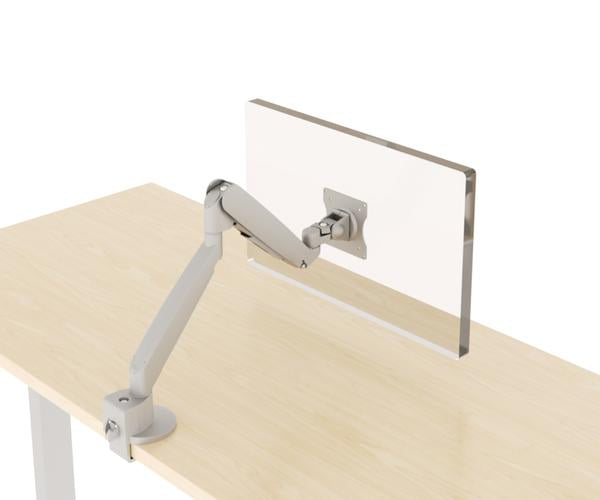

The Conform Articulating Arm is a versatile ergonomic product engineered to improve workspace environment. Designed to support modern lightweight displays, it is easy to install and transforms workcentres into comfortable and productive workspaces.
With its easy to configure pin connection system, you can interchange the arms or attach them to a range of base options and accessories to suit your needs. The Conform Articulating arm is a valuable TAA compliant hardware that supports over 12,000 cycles and exceeds ANSI/ BIFMA x5.5 requirements.
Technical Drawing
Specifications:
|
Monitor Weight Range |
5 - 17 lbs |
|
Reach |
22.5” |
|
Ärticulation Range |
13” |
|
Monitor Tilt Range |
+90° / -45° |
|
Monitor Pivot Range |
+ / -90° |
|
Monitor Rotation |
+90° / -90° |
|
Stowed Depth |
5.25" |
|
Maximum Monitor Height |
16" |
|
Colors |
Silver |
|
Warranty |
10 years |
- Interchangeable and expandable pin assembly system that promotes flexibility and adaptability
- Integrated cable management system that easily routes and conceals cables
- Compatibility with Standard VESA (75 mm & 100 mm) mount monitors
- Space-saving foldable arms that provide more usable work space.
