Workrite

3176-17TG

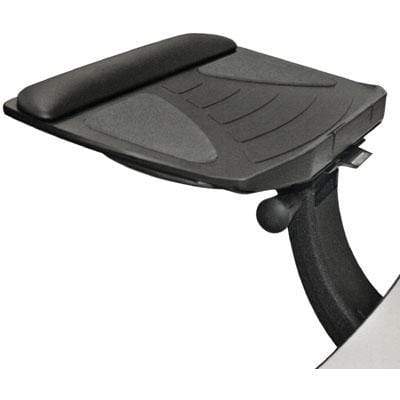

Workrite Pinnacle AD arm



Track Length
Ask an expert
Our friendly customer support can help you. 888-377-61590

Looking to customize you workstation to suit your work requirements? Or do you simply fancy having a personalized work center to help you work more efficiently? The Pinnacle AD arm is a good option if you’re looking for a handy mount that is space saving as well as conveniently adjustable having independent height and angle controls. It can be positioned either above or below desk.

The Pinnacle AD 3176-17TG and 3176-22TG in particularcomes with a17” and 22” long nylon glide
track with a 6” and 11” platform storage.





 WorkRite Pinnacle AD Arm - Range of Motion



WorkRite Pinnacle AD Adjustable Keyboard Arm 3176 - Height Range



Height Range



WorkRite Pinnacle AD Adjustable Keyboard Arm 3176 - Tilt Range



Tilt Range

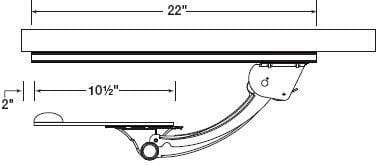

Retracted Storage - Stored position with typical 10.5 inch platform



Retracted Storage - Stored position with typical 10½" platform

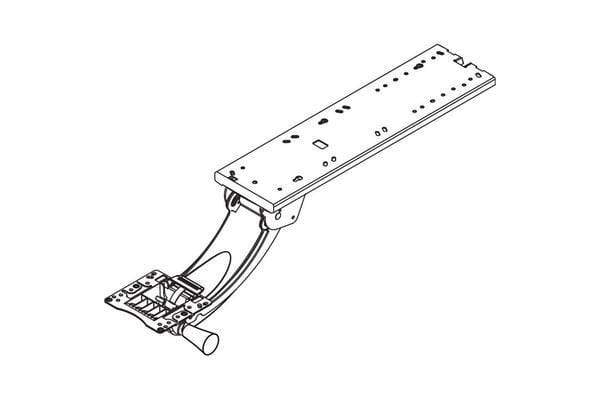

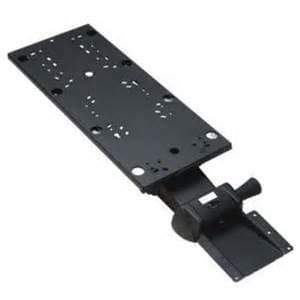

WorkRite Pinnacle AD Adjustable Keyboard Arm 3176-17TG with 17 inch Track Image



Specifications:



Tilt Range

-15° to +10º

Height Range

7¼" above desk to 7" below

Swivel

360º

Track Style

low-profile progressive ball bearing slide track




  WorkRite Pinnacle AD Arm -Cut Sheet







Specifications:

Tilt Range

-15° +10°

Vertical Adjustment

From 7.25" above to 7" below the work surface

Track

17” ball bearing track
22” ball bearing track

Platform Storage

6” (17" track)
11” (for 22” track)

Swivel

360°

Color

Black




Features:

Lift-N-Lock one-touch height adjustment

Low profile ball bearing track, 5.75" in width
